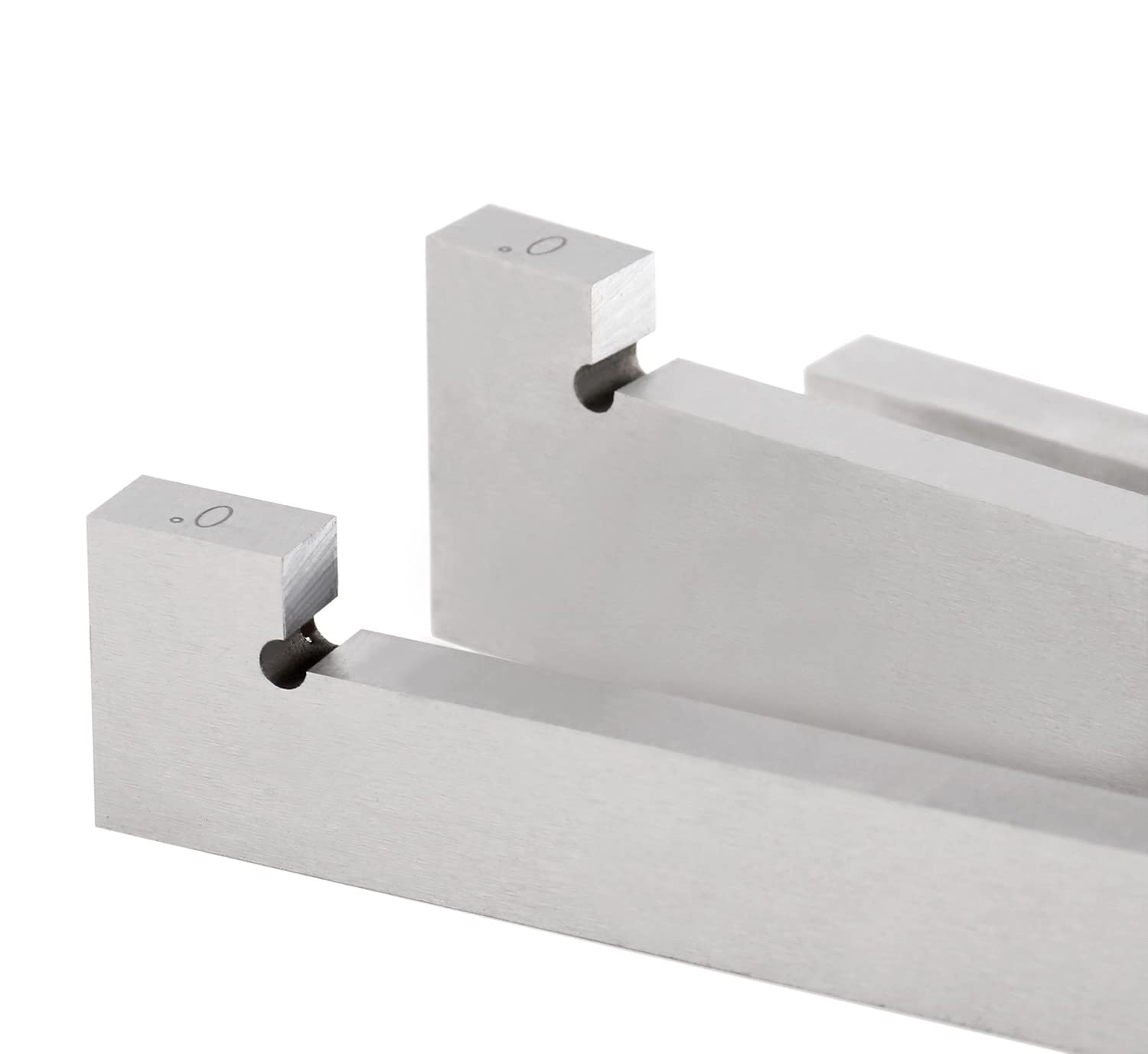

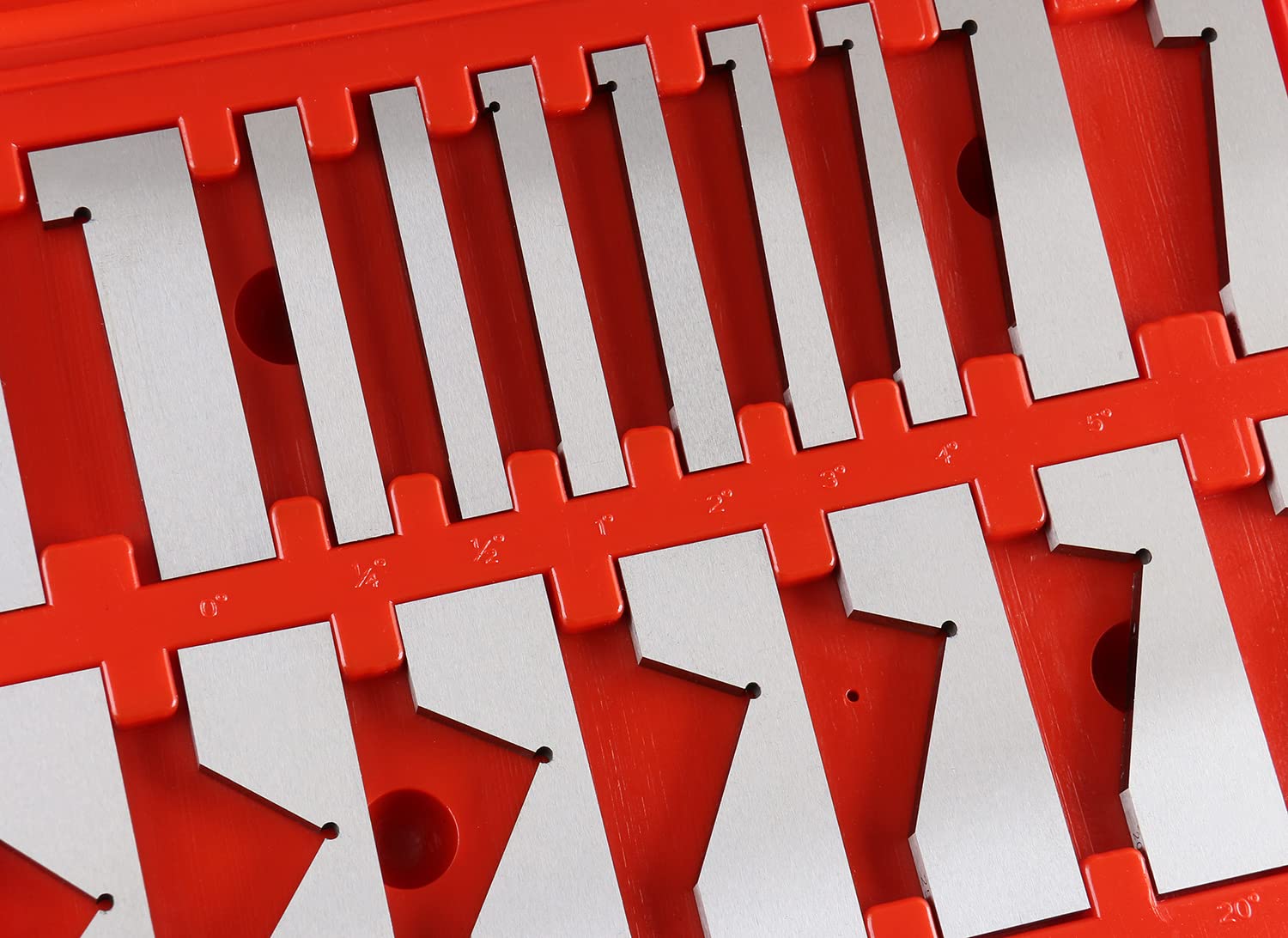

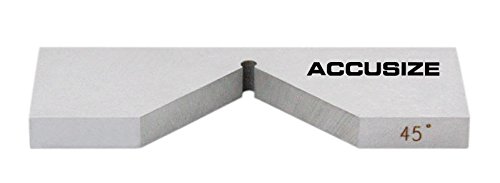

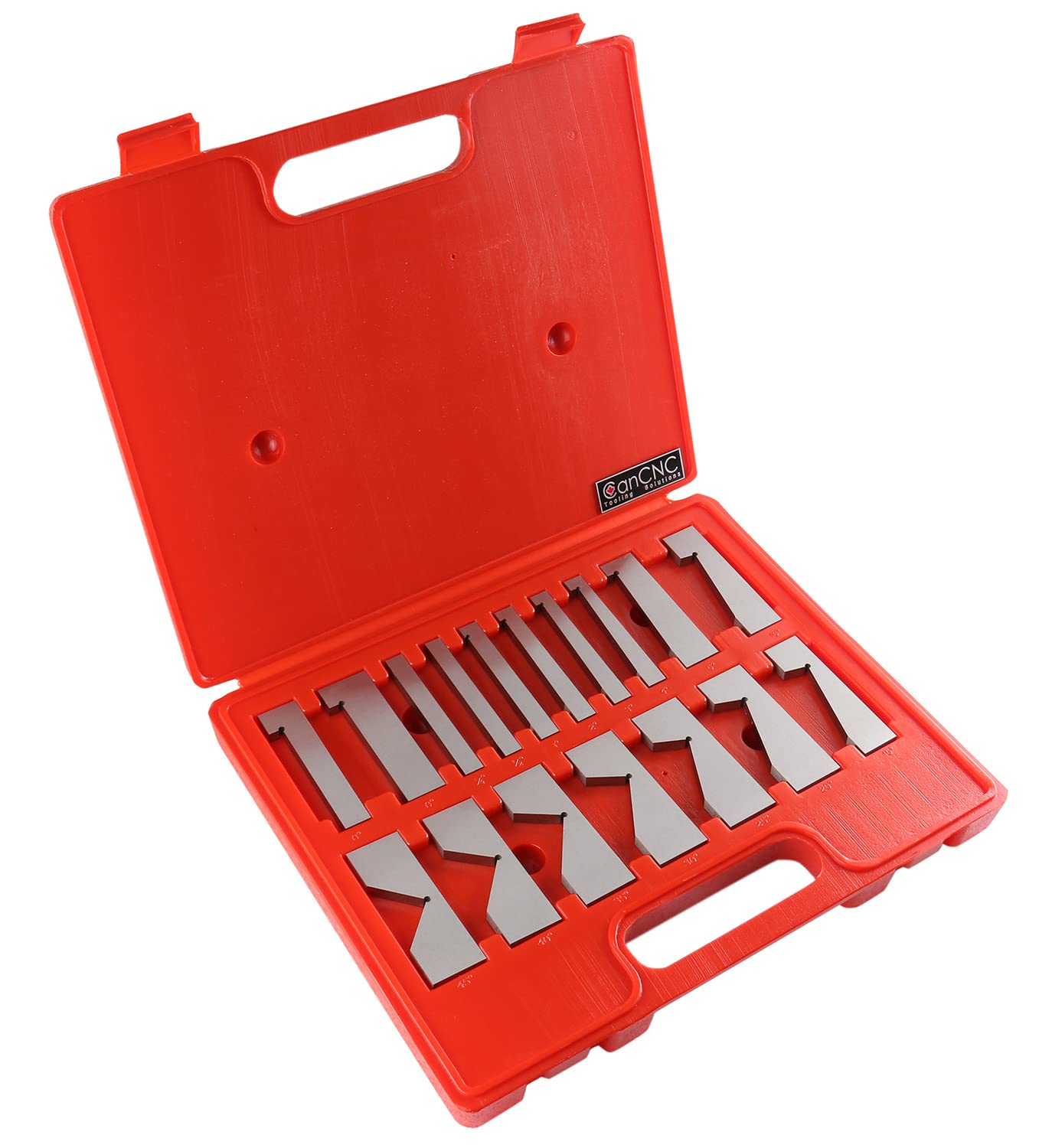

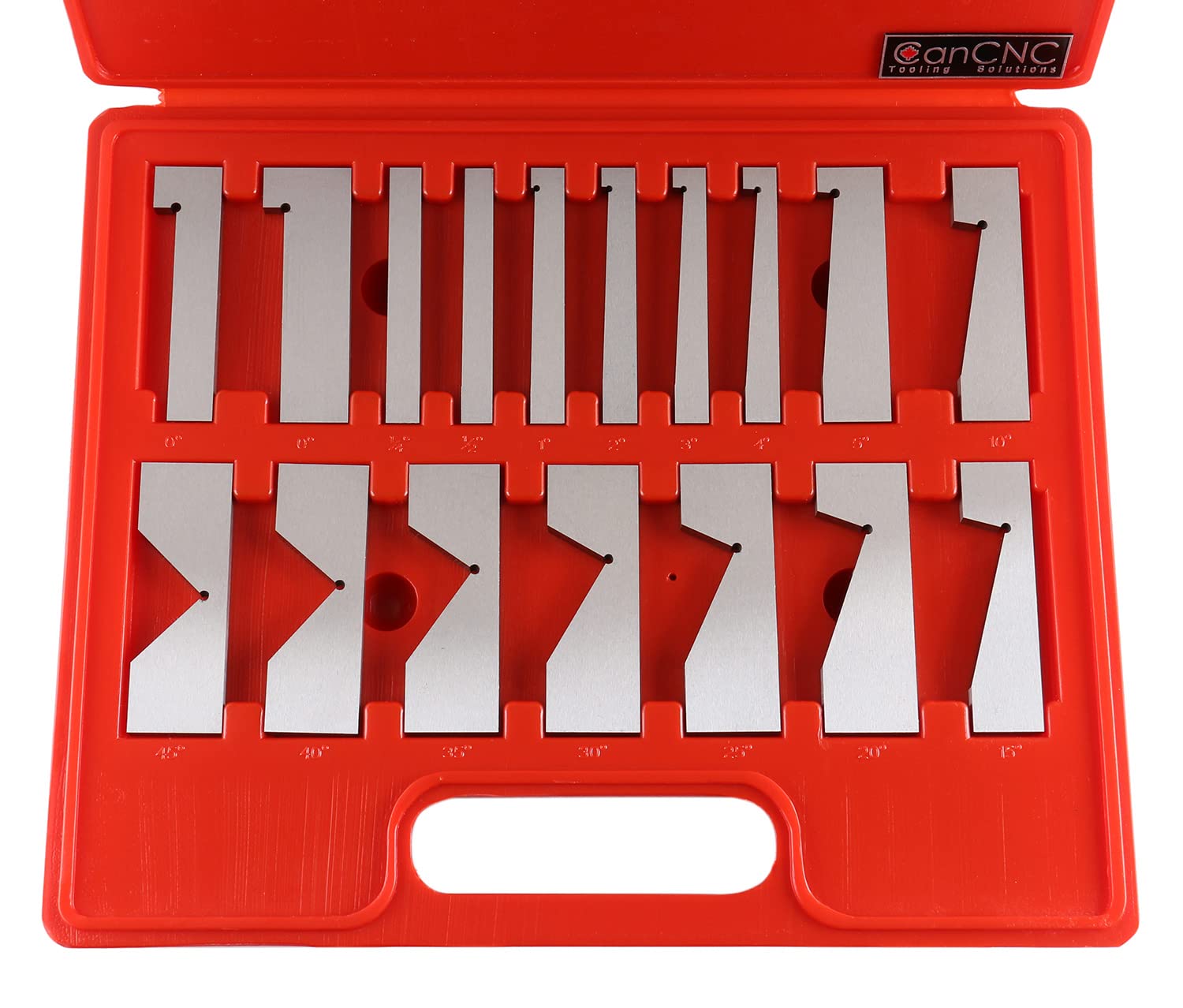

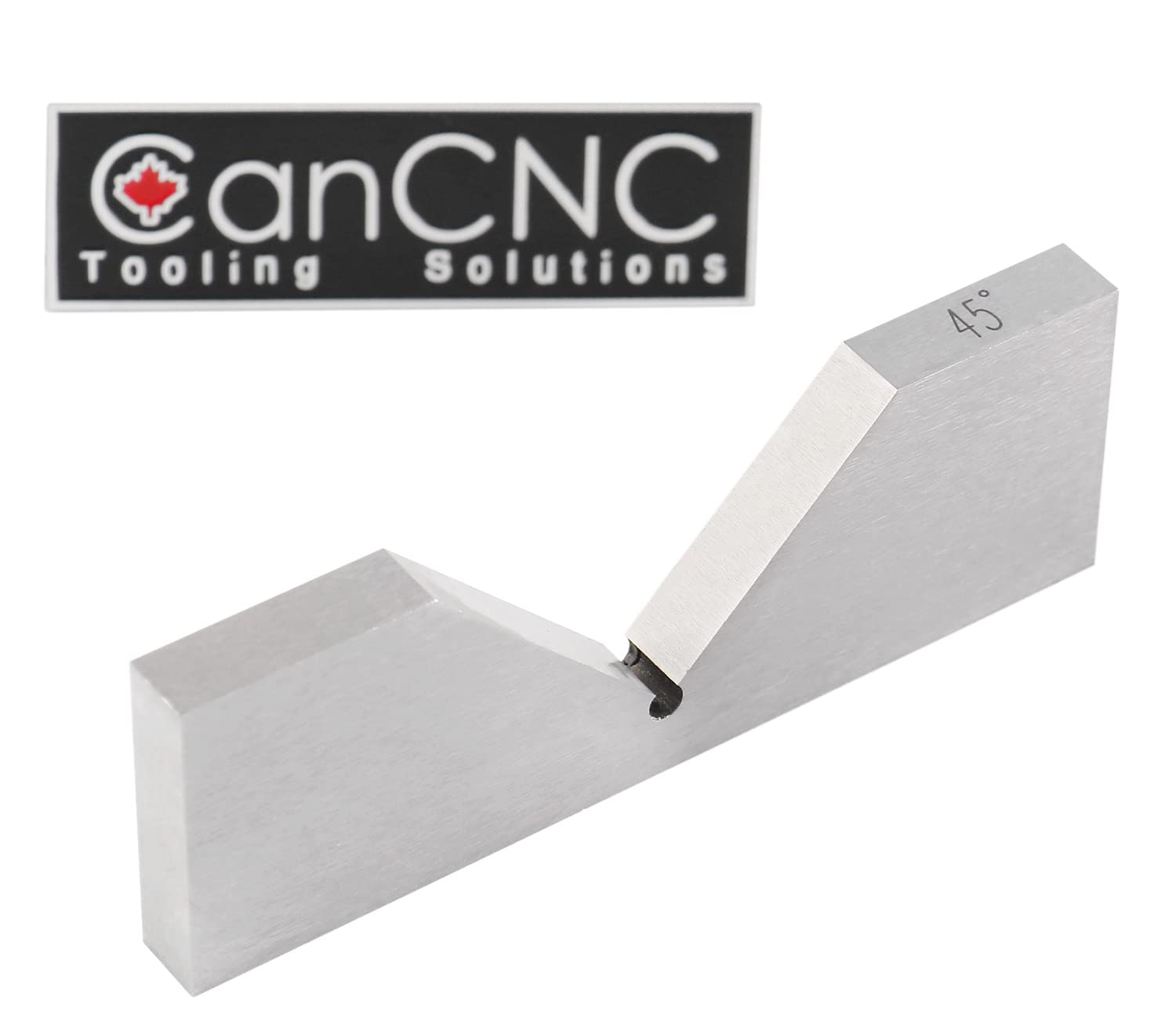

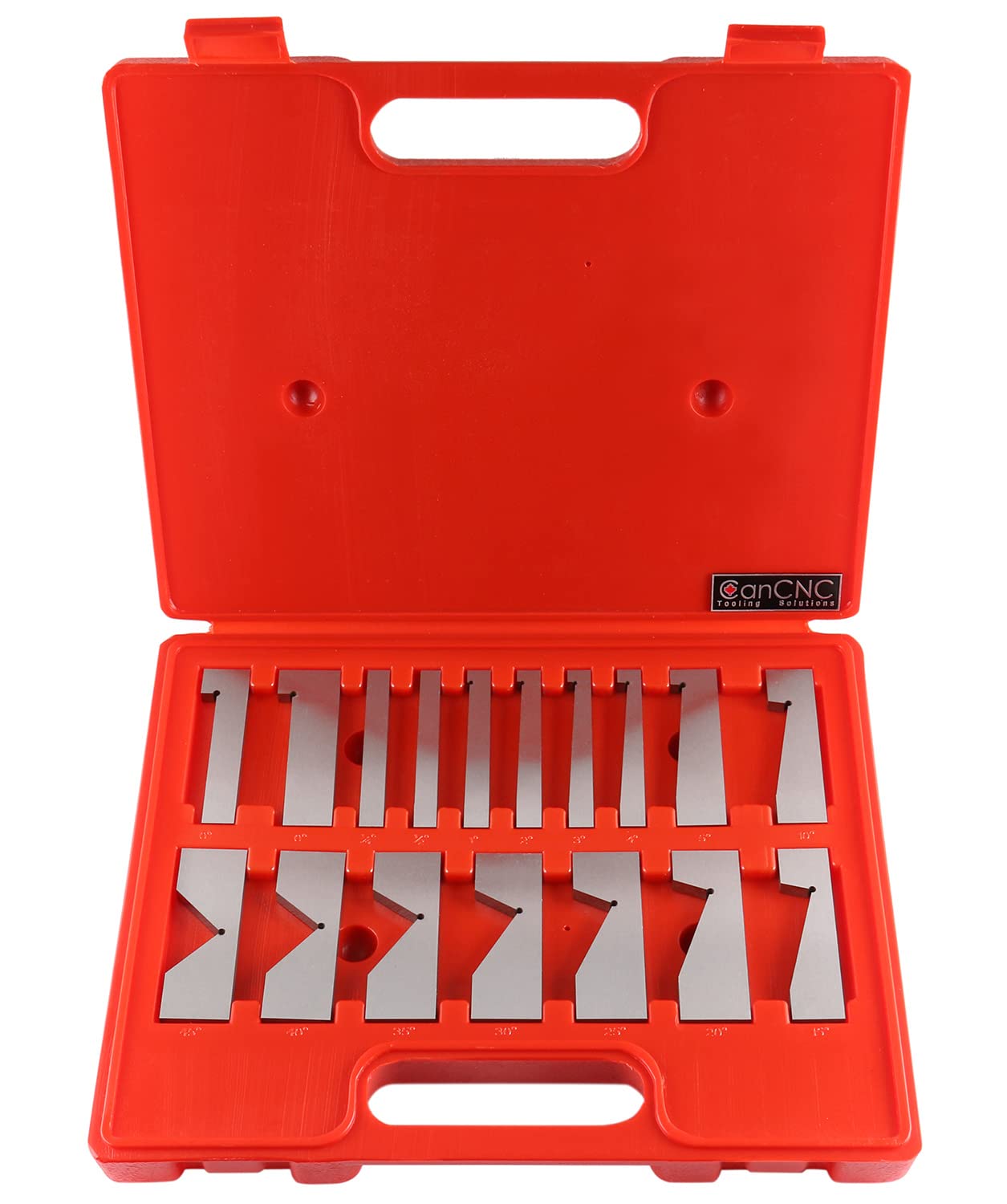

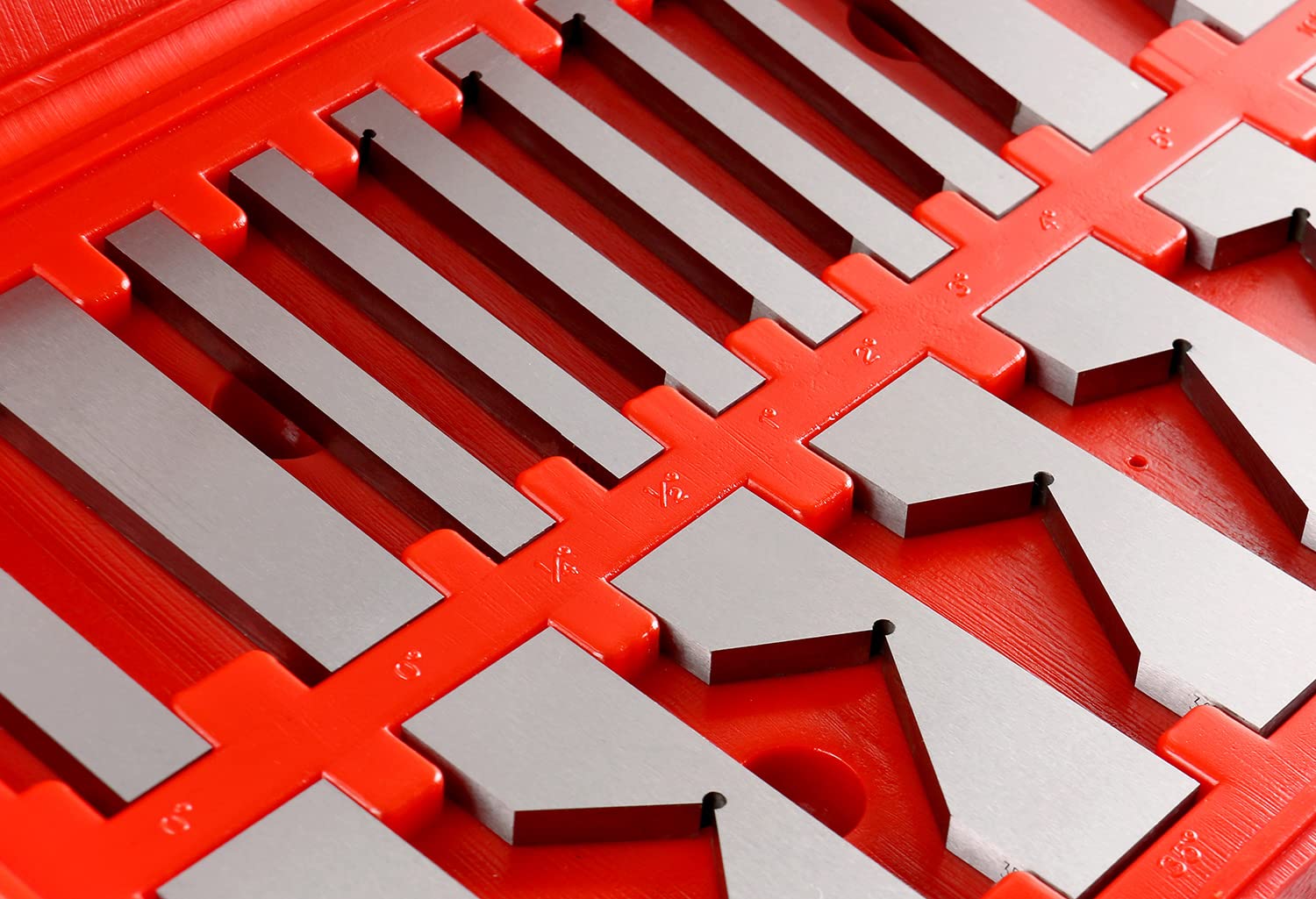

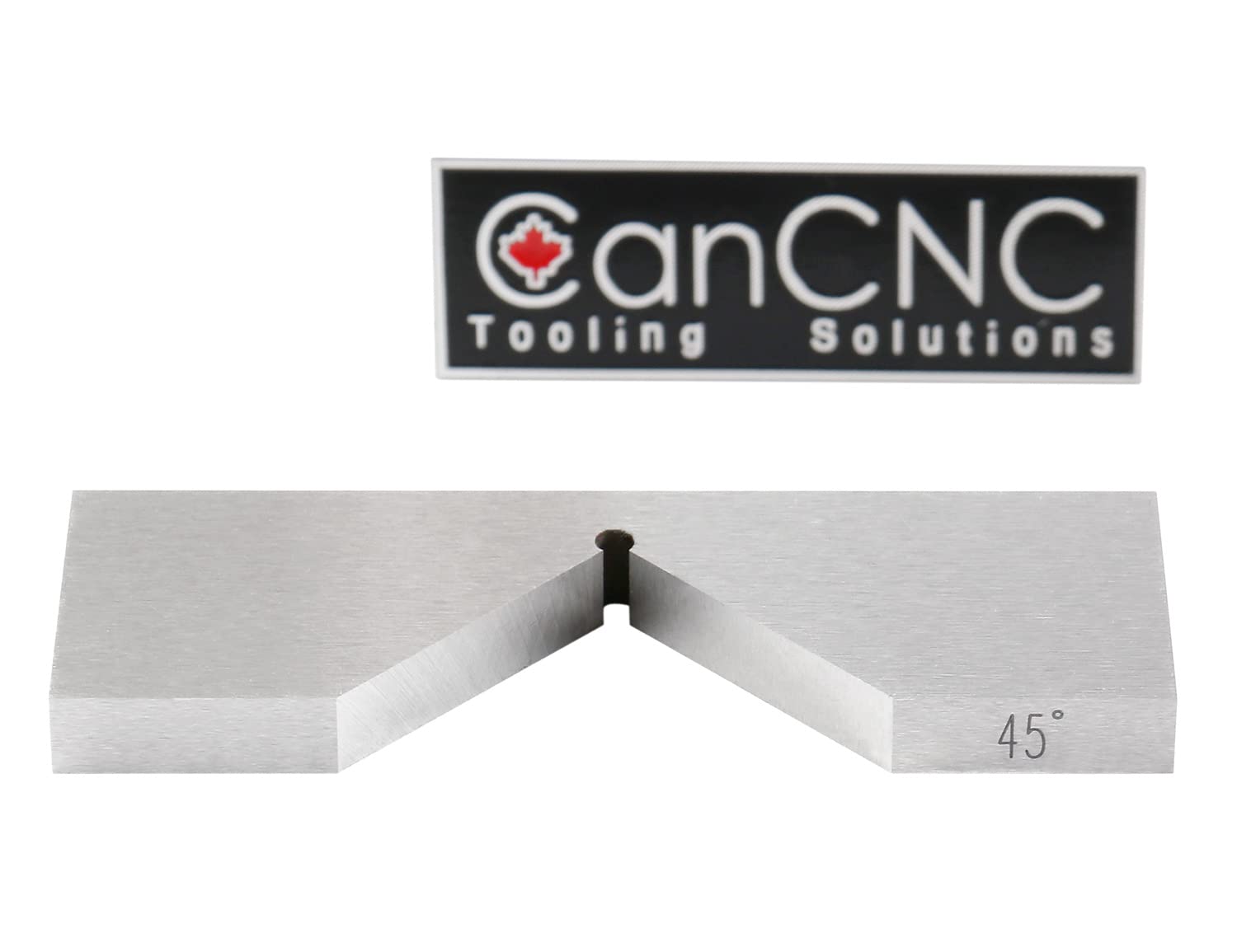

Accusize Industrial Tools EJ99-2117 17-Pc Precision Angle Block Set Accusize Industrial Tools EJ99-2117 17-Pc Precision Angle Block Set Blocks with StoppersMade from Hardened Steel HRC 45-50;Accuracy is within 0.0001''/inch; Length x Thickness: 3.0 x 0.26 inchPacked in custom wooden caseSet including the following angles: 1/4, 1/2, 1, 2, 3, 4, 5, 10, 15, 20, 25, 30, 35, 40, and 45, plus 2 Riser BlocksUsed for grinding and milling machine operations * The smallest 2 angle blocks have no stops. ** Riser blocks have no degrees. Angle Blocks with Stops vs without Stops With stops, improve efficiency13 angle blocks have the stoppers2 angle blocks don’t (1/4 deg and1/2 deg )2 riser blocks have 90-deg-stops. Please note the riser blocks are not angle blocks Protective Paper Each of the blocks comes with protective paper. Stack angle blocks Stack any angle blocks to create new angles. With the stops, you can create the new angles faster Leverage the right angle Leverage the right angle of the 90-deg of each block to verify right angles Simple examples Initial Step Clamp a workpiece with the milling chuck. Use any necessary setup tools if possible. Mill the workpiece as in the picture. Stack different Angle Plate Place angle plate (maybe with other setup tools like a pair of precision parallels) on the milling vise, against the vise jaw. (b)Place the workpiece against the angle plate, rotating the workpiece until the face just machined is against the angle plate without any gap. (a)Clamp the workpiece with the vise jaws and put the angle plate aside.Mill the workpiece with the cutter at the same level as the first step. (c) Final Shapes Repeat steps 1, 2, 3, and 4 until the workpiece gets the right shape. Repeat 1 time, you get the shape on the leftRepeat 5 times, you get the shape on the right Accusize EJ99-2117 17-Pc Precision Angle Block Set Accusize 3602-0111 10-Pc Precision Angle Block Set Accusize 3602-0224 Universal Angle Block Set Accusize 3610-9010 Solid Angle Plates Set Accusize 0°~60° Precision Angle Block Add to Cart Add to Cart Buying Options Add to Cart Add to Cart Customer Reviews 4.1 out of 5 stars 37 4.5 out of 5 stars 192 — 4.6 out of 5 stars 62 4.5 out of 5 stars 2 Price $90.20$90.20 $46.00$46.00 — no data $33.44$33.44 $72.60$72.60 Item # EJ99-2117 3602-0111 3602-0224 3610-9010 3602-0091, 3602-0092 Material Hardened steel Hardened and precision ground Hardened and precision ground Hardened & ground steel Hardened steel Usage Grinding and milling machine operation. For angle set-up in tooling, production and inspection For angle set-up in tooling, production and inspection For angle set-up in tooling, production and inspection For angle set-up in tooling, production and inspection Including angles: 1/4°, 1/2°, 1°, 2°, 3°, 4°, 5°, 10°, 15°, 20°, 25°, 30°, 35°, 40°, and 45°, plus 2 riser blocks. Furnished in 1° increments to 5°, and at 5° increment to 30°. V-Blocks 10°, 15°, & 30°. Angle Plates 1°, 2°, 3°, 4°, & 5° (30º, 60º, 90º) and (45º, 45º, 90º) 0°~60°
